Center Feed Bushings

Product Sample PhotographsCatalog PDF File

Our impressive “SOLUTION” center-feed bushing construction establishes a level of durability, performance and versatility surpassing all others in the industry. This unique construction forms an incredibly compact, high strength bushing capable of reliable performance under the most severe operating conditions.

“SOLUTION” bushing thermal characteristics are coordinated to the actual mold environment. This thermal coordination establishes the optimum temperature profile for actual mold operating conditions and provides the temperature uniformity essential to quality molding of all thermoplastic resins.

A removable mineral insulated thermocouple installed into the “SOLUTION bushings’ integral thermowell provides precise temperature control.

“SOLUTION” bushing performance has been extensively evaluated in a variety of molding applications. Molders have repeatedly confirmed the superior results provided by our system coordinated heat profiles. “SOLUTION” center-feed bushings are the logical choice for processing both commodity and engineering resins.

Standard “SOLUTION” center-feed bushings are offered in a variety of configurations and sizes designed to accommodate most single sprue and multi-cavity hot manifold applications.

Custom “SOLUTION” bushings are readily available and can be supplied in configurations designed to satisfy special dimensional requirements in new molds or to retrofit existing bushings in problem molds.

Product Sample Photographs

Click on each image to enlarge

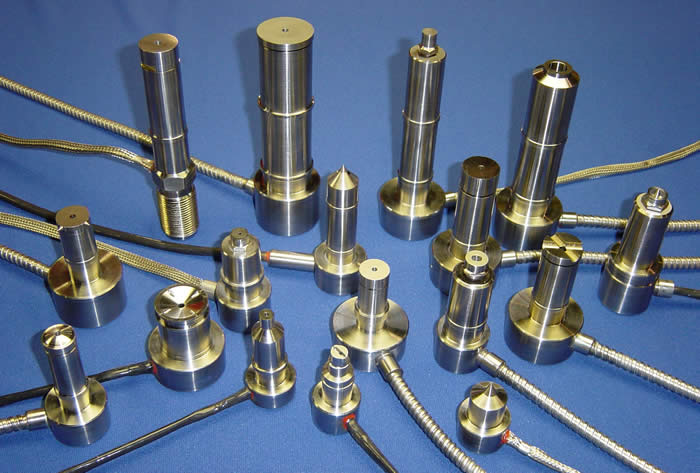

“SOLUTION” Center-Feed Bushings In Assorted Sizes, Styles & Configurations

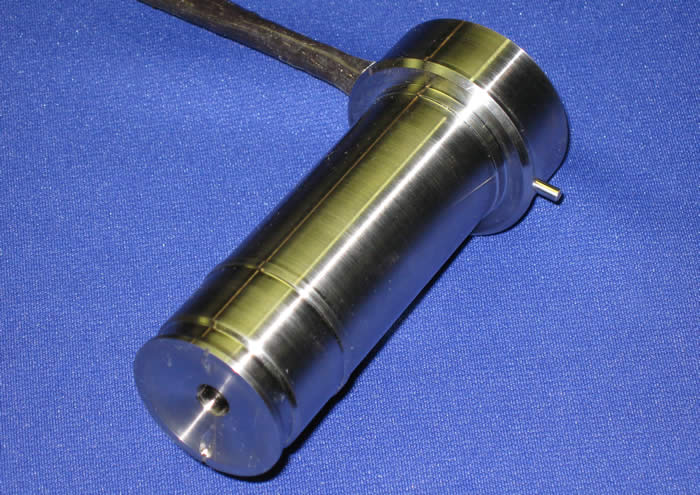

“SOLUTION” Center-Feed Bushing Hot Tunnel Gate Conversion

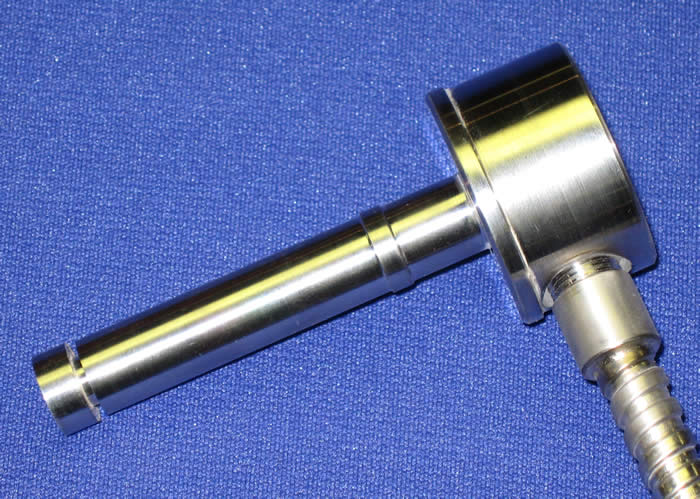

“SOLUTION” Center-Feed Sprue Bushing .512 (13mm) Diameter For Thermoplastic Elastomer (TPE) Application

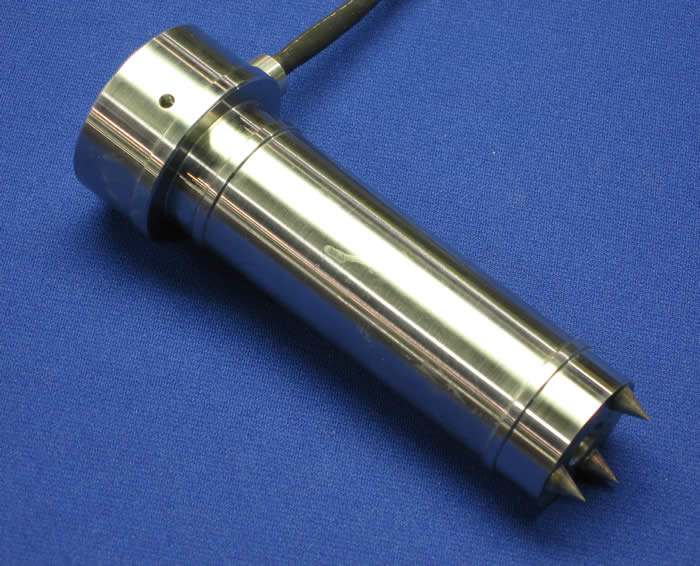

“SOLUTION” Center-Feed Sprue Bushing With Multiple Pin Gate Tip Configuration
“SOLUTION” Center-Feed Bushing Sectional Views Of Body & Integral Heating Element

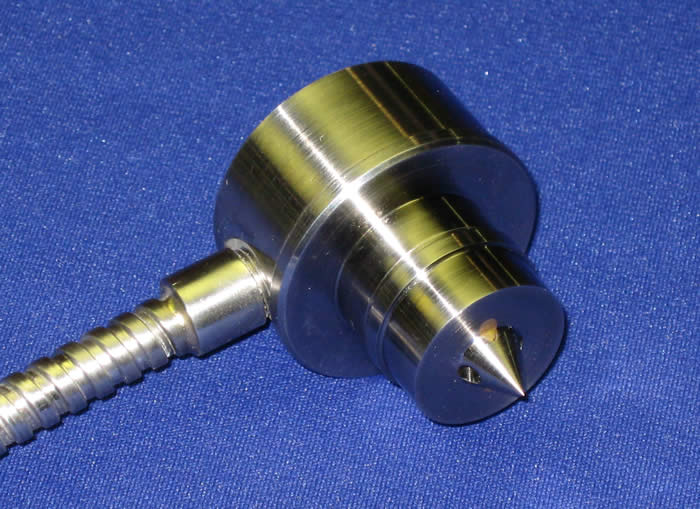

“SOLUTION” Center-Feed Bushing Integral Tip With Copper Inserts For Acetal Application

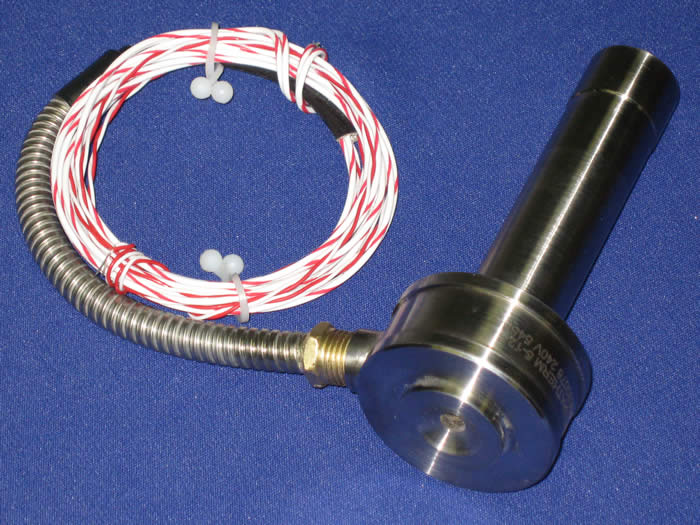

“SOLUTION” Center-Feed Bushing 1.000 Diameter 4.375 Long "Fast Heat" Configuration

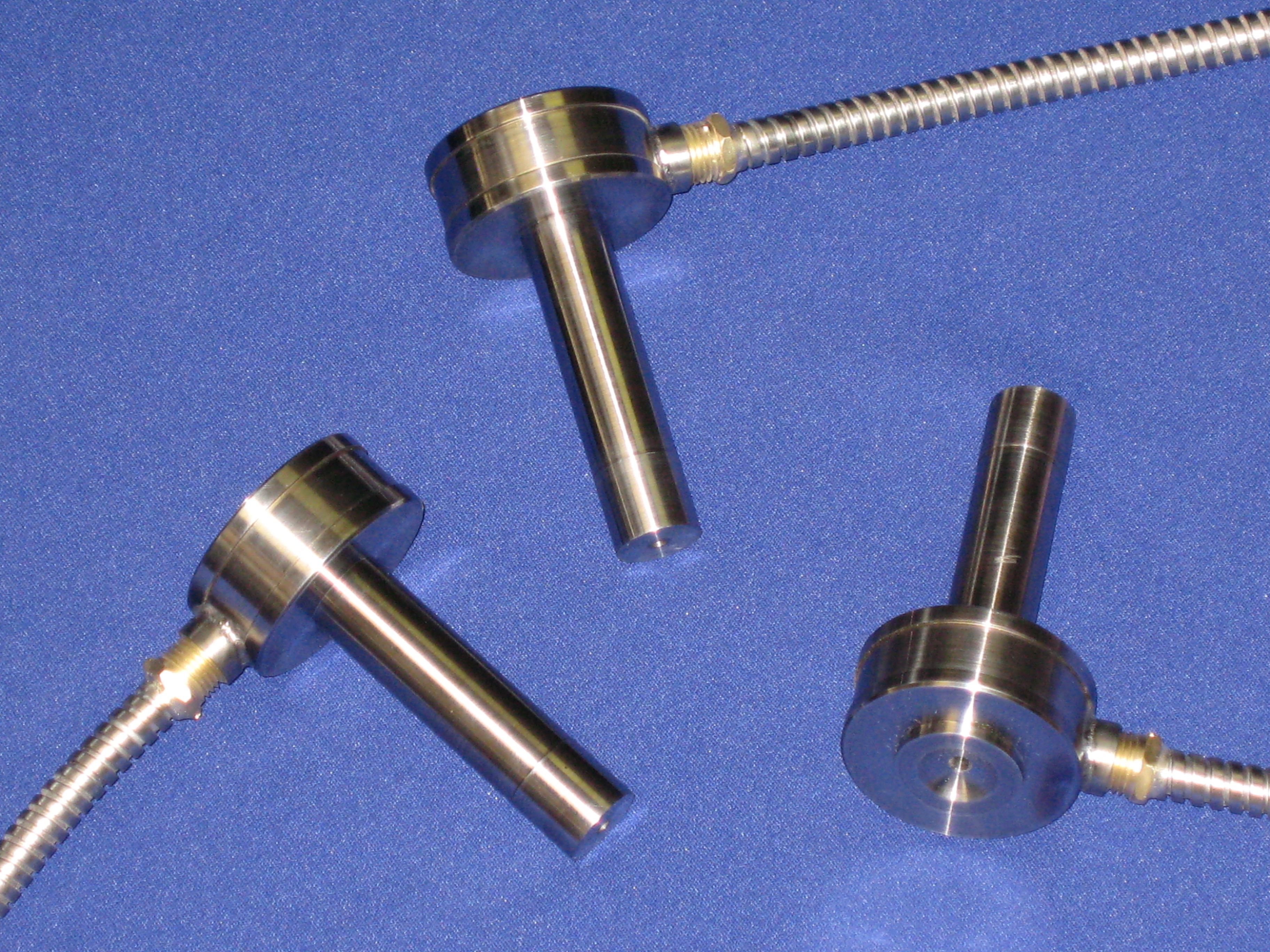

"SOLUTION" Center-Feed Bushings .750 Diameter Sprue Bushings With Extra Stock In "Fast Heat" Configuration

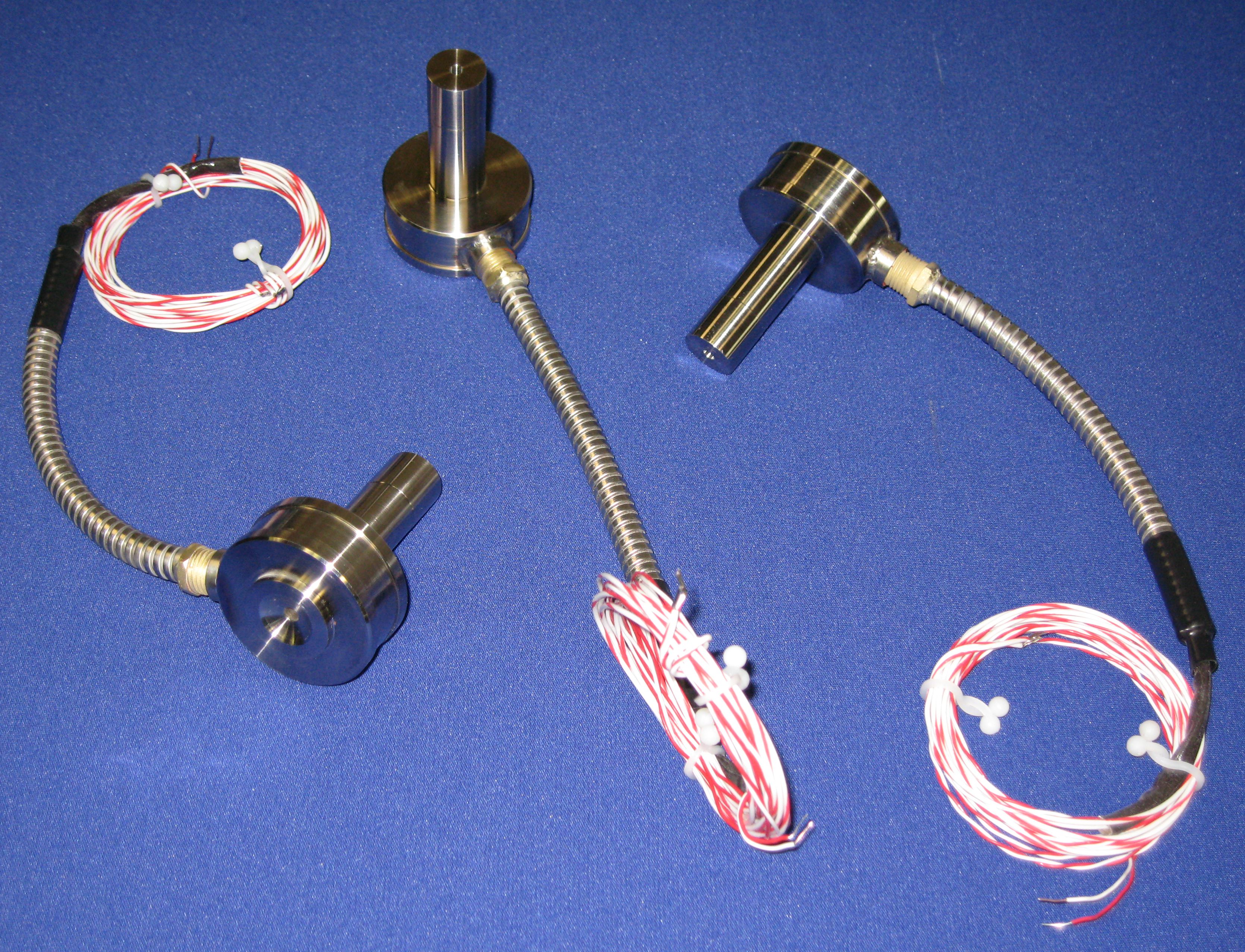

"SOLUTION" Center-Feed Bushings .750 Diameter X 2.875 OAL Sprue Bushings With Extra Stock

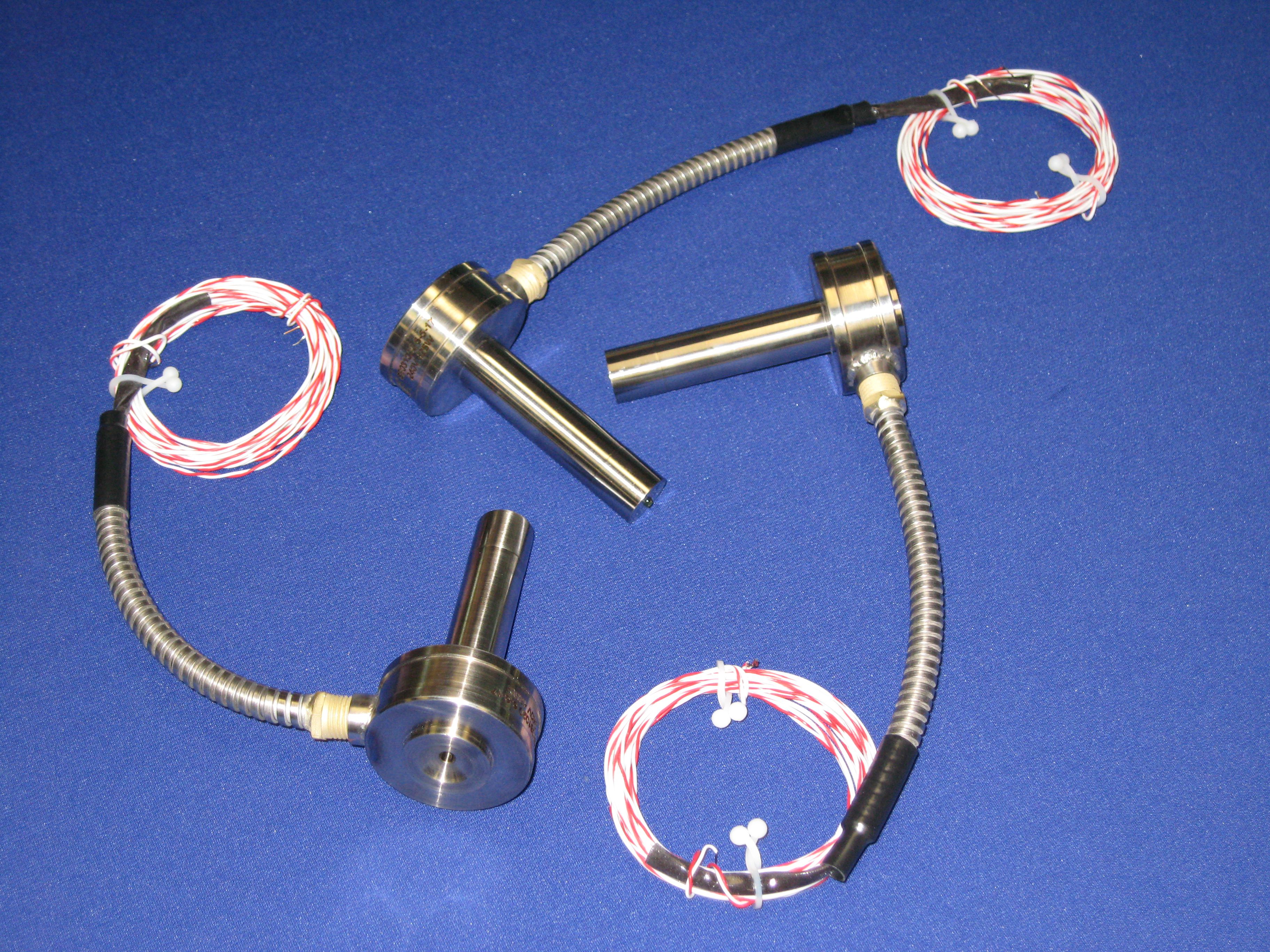

"SOLUTION" Center-Feed Bushing .750 Diameter X 3.375 OAL With Machining Stock

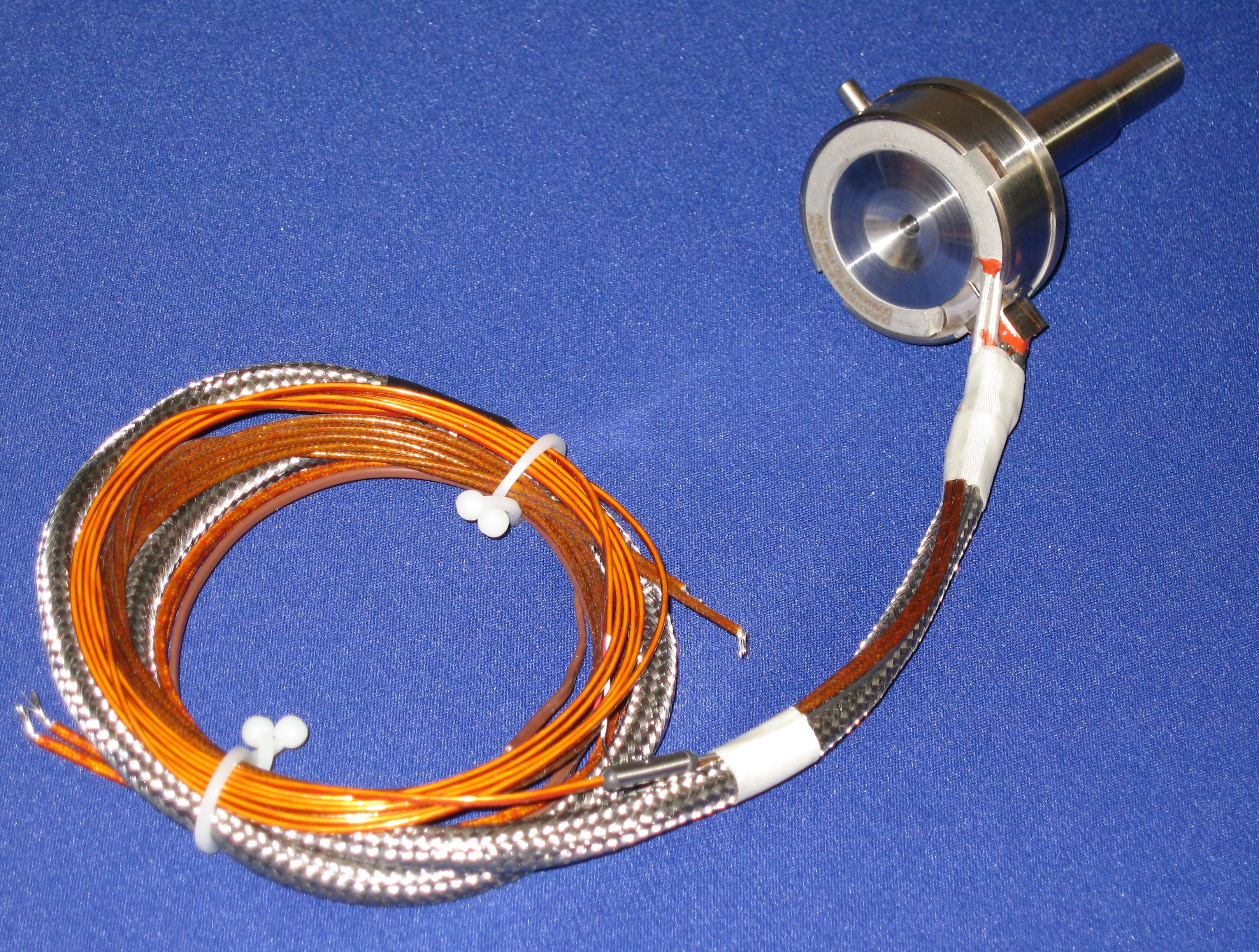

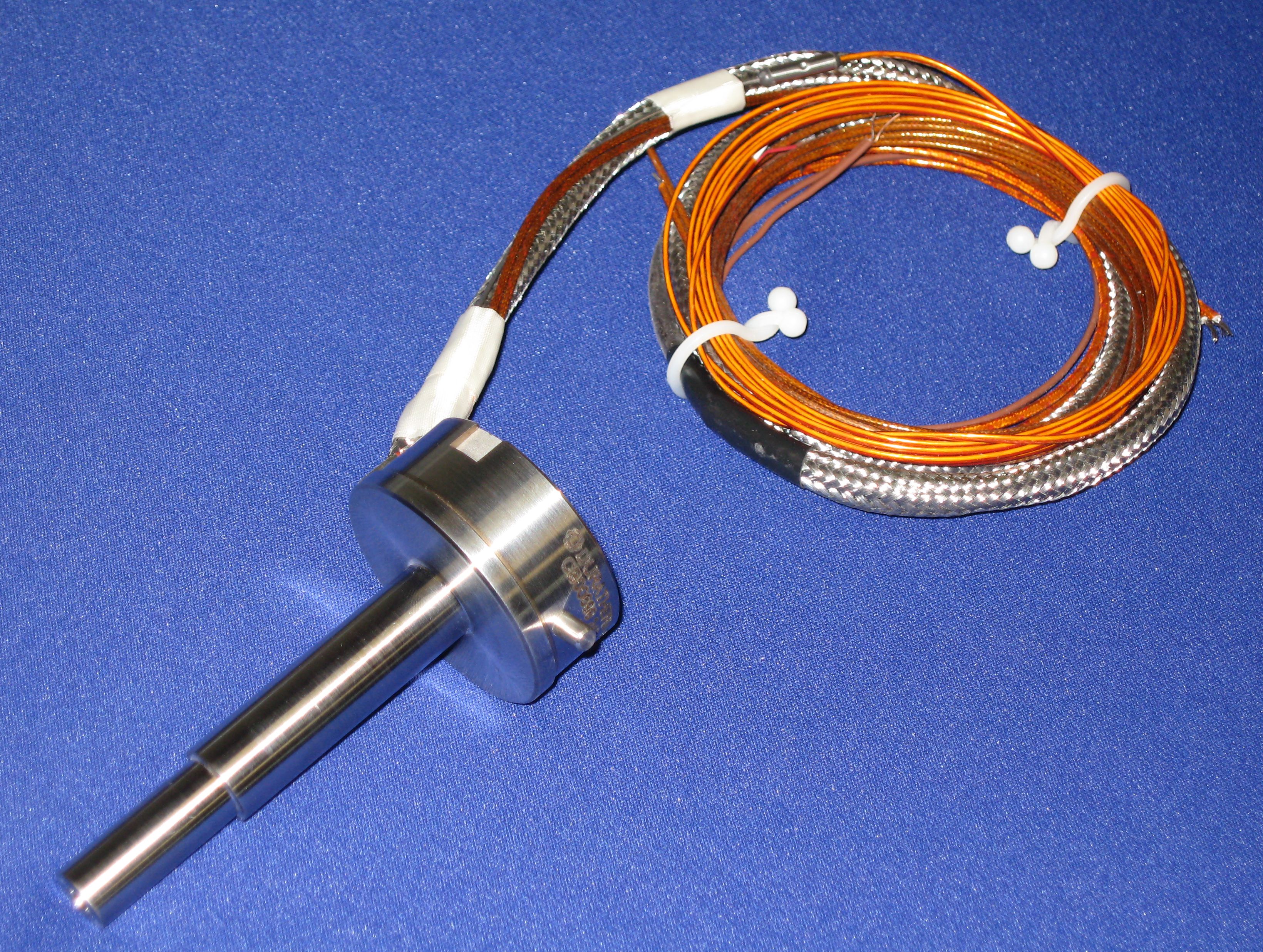

"SOLUTION" Center-Feed Bushing .625 Diameter X 4.262 OAL With Reduced Diameter Body And Rear Zone Heater (Front View)
"SOLUTION" Center-Feed Bushing .625 Diameter X 4.262 OAL With Reduced Diameter Body And Rear Zone Heater (Rear View)

Catalog PDF File

Click to download PDF file here
